Fine-pitch LED displays

For indoor large-format display requirements. Confirm the LED encapsulation type and equipment list against display dimensions, viewing distance and site conditions.

Discuss your requirementsWhat to confirm

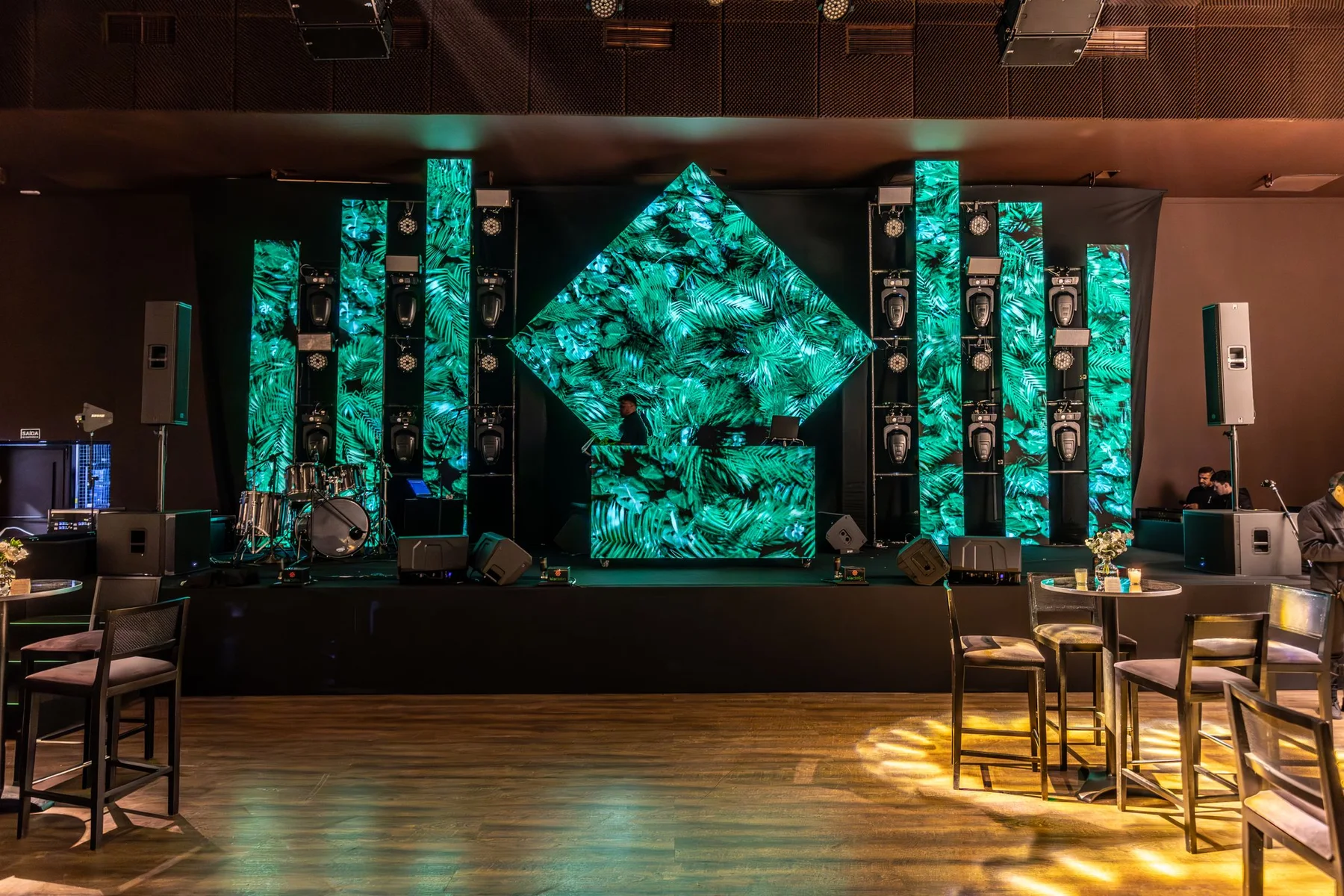

Photograph of indoor stage LED display panels
Photography is for application and product-type reference, not MINX project documentation. Confirm the actual brand, model, size and configuration in the equipment list.
MANUFACTURER DOCUMENTS · PROJECT PRODUCTS

TCL COB LED products

The models and specifications below come from the corresponding manufacturer documents and support initial selection. Overall display resolution, control, power distribution, structure and final configuration require site-specific confirmation.

TCL integrated LED wall-mount and mobile-stand solution rendering
Manufacturer solution rendering; actual product appearance is subject to final delivery.
TCL COMMERCIAL · INTEGRATED COB LED

TCL integrated LED solution

136- and 163-inch 16:9 COB displays integrate wireless casting, system control and audio for meeting rooms, auditoriums and presentation spaces.

TCM12136
136-inch · P1.25 · 2400 × 1350
TCM09163
163-inch · P0.9375 · 3840 × 2160
  • COB encapsulation
  • Front service
  • ≥3840 Hz refresh rate
  • Wall mount included · mobile stand optional
Discuss project configuration

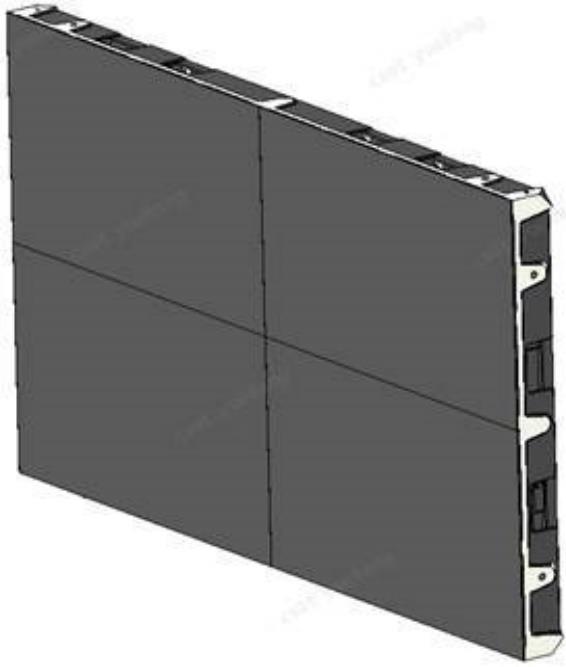

TCM12136 Full flip-chip COB LED cabinet
Manufacturer product structure illustration; refer to the delivered product for final appearance.
Full flip-chip COB LED cabinet

TCM12136 · P1.25

Pixel pitch
P1.25
Cabinet resolution
480 × 270
Cabinet dimensions
600 × 337.5 × 38.1 mm
White-balance brightness
600 nit
Refresh rate
≥3840 Hz
Cabinet weight
3.6 kg
Service / material
Front service · die-cast aluminium
Enquire about this model

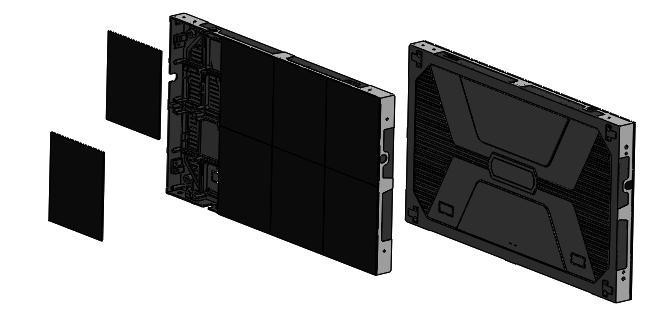

TCM09163 Full flip-chip COB LED cabinet
Manufacturer product structure illustration; refer to the delivered product for final appearance.
Full flip-chip COB LED cabinet

TCM09163 · P0.9375

Pixel pitch
P0.9375
Cabinet resolution
640 × 360
Cabinet dimensions
600 × 337.5 × 38.1 mm
White-balance brightness
800 nit standard / 600 nit optional
Refresh rate
≥3840 Hz
Cabinet weight
4.4 kg
Service / material
Front service · die-cast aluminium
Enquire about this model

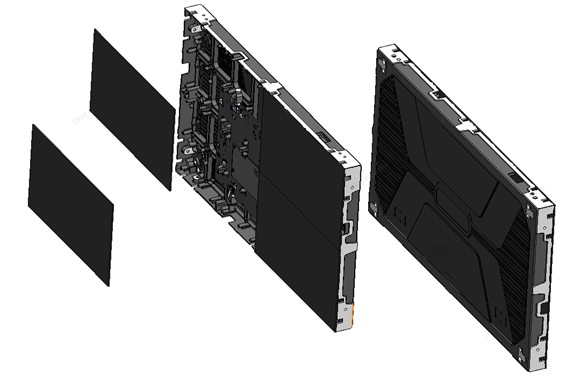

TCB150FA Full flip-chip COB LED cabinet
Manufacturer product structure illustration; refer to the delivered product for final appearance.
Full flip-chip COB LED cabinet

TCB150FA · P1.5625

Pixel pitch
P1.5625
Cabinet resolution
384 × 216
Cabinet dimensions
600 × 337.5 × 38.1 mm
White-balance brightness
600 nit
Refresh rate
≥3840 Hz
Cabinet weight
3.6 kg
Service / material
Front service · die-cast aluminium
Enquire about this model

Product images are manufacturer structure illustrations. Specifications are reference values from manufacturer documents; actual configuration, production batch and project conditions may vary. Final confirmation and the delivered product prevail.

Start with the complete display

Send site photos or a requirement list so we can clarify the selection criteria.

Wall width and height
Target display dimensions, available space and structural constraints.
Viewing distance
Main viewing positions, nearest viewing distance and content type.
Target resolution
Overall resolution required by the content and signal sources.
Servicing and power conditions
Front/rear service access, power, cooling and site structure.

LED encapsulation options to confirm

Configuration to confirm

COB encapsulation option

Confirm suitability, cabinet configuration and service access for the project.

Configuration to confirm

SMD encapsulation option

Confirm the configuration against viewing distance, content and operating conditions.

COB / SMD are LED encapsulation options, not confirmed models, specifications or stock.

Confirm the complete equipment list

  • Video processor
  • Sending and receiving system
  • Power distribution
  • Structure and frames
  • Cables and spare parts

Confirm models, compatibility and quantities for the display, control and supporting equipment item by item. Configuration and supply follow the confirmed list.
