Display only · Non-touch
TCL D75A 75-inch non-touch meeting display
Connect a computer or other source through HDMI. USB 2.0 is power-only and is not described as a media-playback port.
- Resolution / refresh rate
- 3840 × 2160 @ 60 Hz
- Brightness (typ.)
- 350 cd/m²
- Operating power
- 220 W
- VESA
- 300 × 300 mm
- Net weight
- 18.4 kg

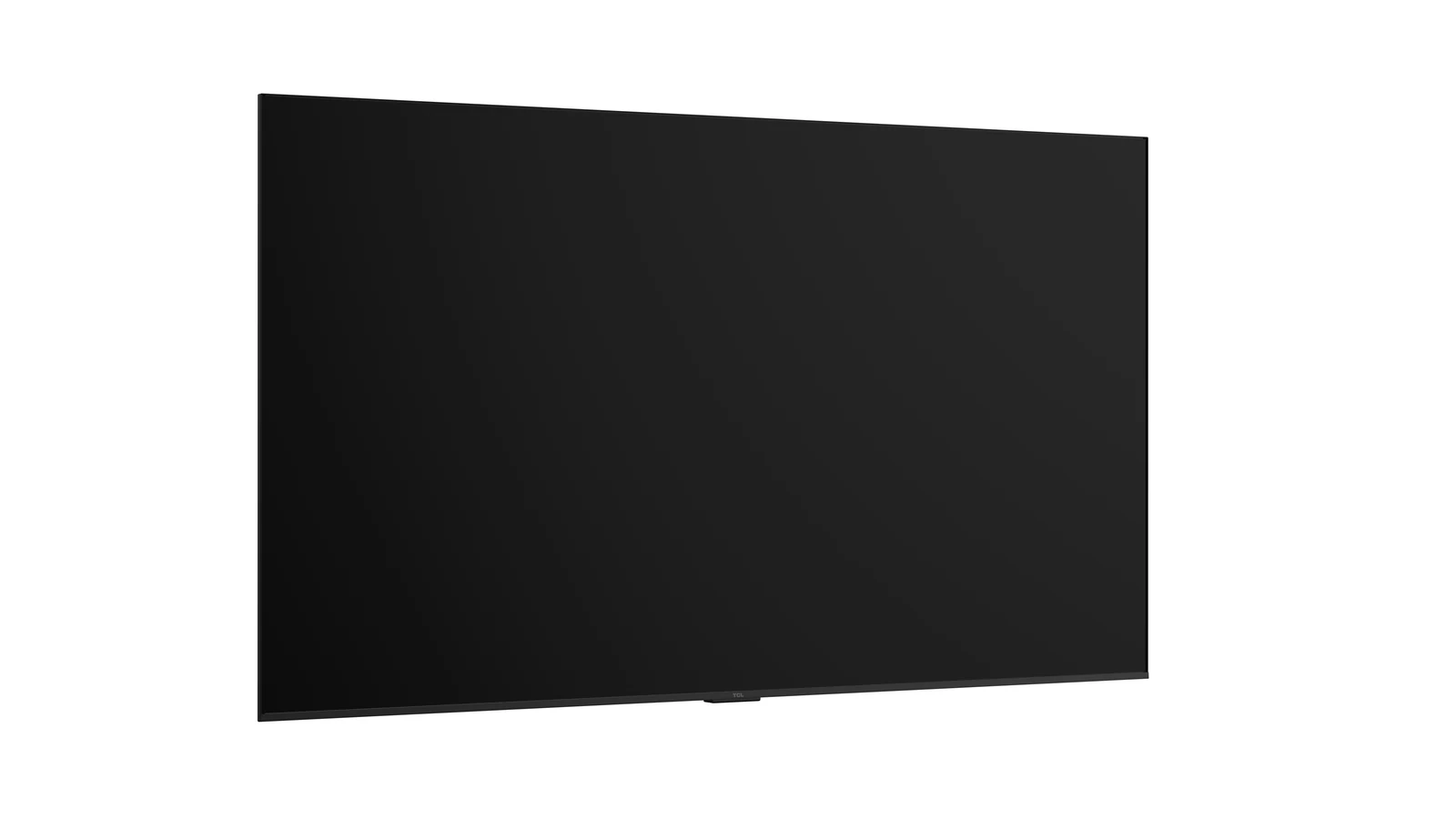

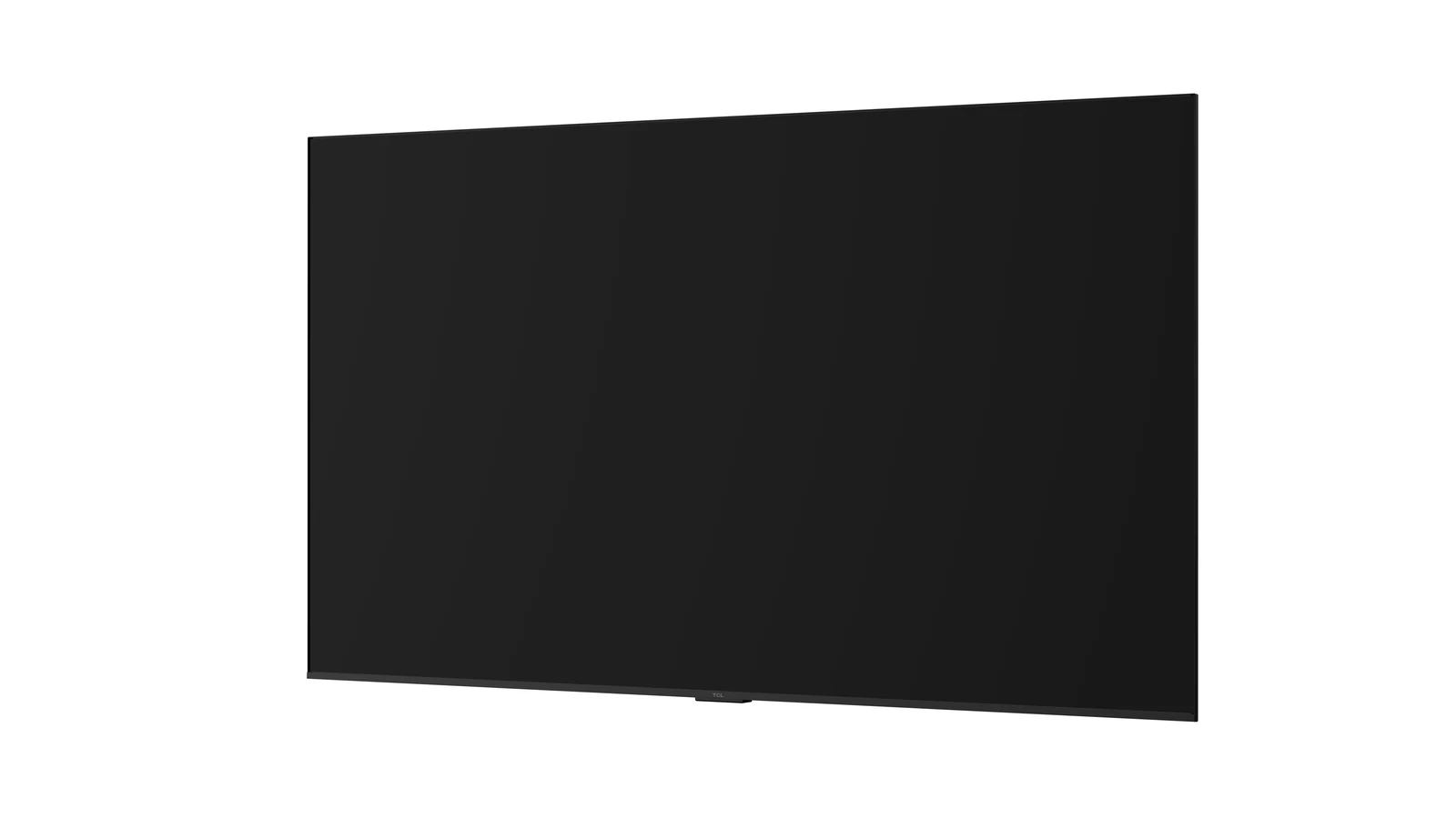

TCL D75A 75-inch non-touch meeting display · Front view · Shared D-series appearance reference1 / 5
Detailed specifications
Display
- Size
- 75″
- Backlight
- DLED
- Surface haze
- AG 25%
- Colour gamut
- 92% (DCI-P3)
- Aspect ratio
- 16:9
- Resolution
- 3840 × 2160 @ 60 Hz
- Refresh rate
- 60 Hz
- Brightness (typ.)
- 350 cd/m²
- Contrast ratio (typ.)
- 4000:1
- Colour depth (source)
- 10-bit, 1.07 billion colours
- Response time (typ.)
- ≤8 ms
- Viewing angle
- 178° (H) / 178° (V)
- Service life (typ.)
- 30,000 hrs
Hardware and connections
- Operating system
- /
- Processor
- NT68291
- GPU
- /
- RAM
- /
- Storage
- /
- Cooling
- Chassis air convection
- Bluetooth
- None
- Wi-Fi
- None
- Port direction
- Side-facing
- HDMI IN
- 2
- SPDIF OUT
- 1
- USB 2.0
- 1 (power only)
- RJ45 IN
- /
- Type-C
- /
- USB 3.0
- /
- RS232 (3.5 mm)
- /
Power and accessories
- Standby power
- <0.5 W
- Operating power
- 220 W
- Audio output power
- 20 W
- Packaging
- Carton + EPE foam (display)
- Wall bracket (source quantity)
- 1
- Power cord
- 2 m × 1
- Remote control
- 1
- Quick installation guide
- 1
- HDMI cable
- 1.5 m × 1
- Optional accessories
- Mobile stand, etc. (confirm as required)
Environment, dimensions and weight
- Environment / mounting
- Indoor; wall-mounted or floor mobile stand; landscape
- Operating temperature
- 0°C–45°C
- Operating humidity
- 10%–90% RH, non-condensing
- Storage temperature
- −20°C–60°C
- Storage humidity
- 10%–60% RH, non-condensing
- Altitude (source)
- 5000 m
- VESA
- 300 × 300 mm
- Display dimensions (no stand, source order)
- 1667.6 × 74.8 × 959.8 mm
- Package dimensions
- 1850 × 178 × 1125 mm
- Net weight
- 18.4 kg
- Gross weight
- 26.4 kg
Product and source identifiers
- Brand / model
- TCL D75A
- Shipment country / region
- CN China
- Design
- Three-sided frameless design
- CCC (source entry)
- Y
- Energy saving (source entry)
- Y
- Energy efficiency (source)
- Grade 1
- Specification version
- V1.0 · build 20260911
